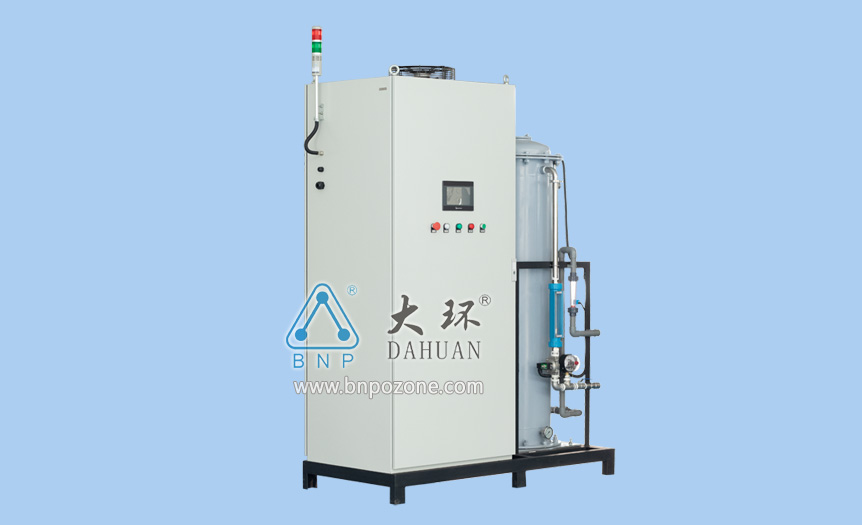

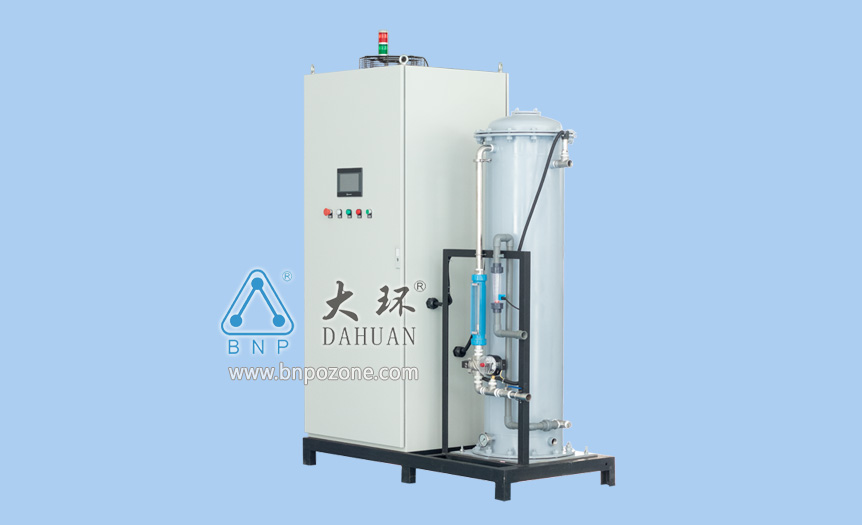

Product Detail:

The SOZ-YW series products use heat-resistant HQG non-glass structure dielectric(BNP patent).The structure is extremely stable,has long lifespan and high discharge efficiency,and not easily damaged in case of back flow water.

Product Features:

Multi-point malfunction monitoring,main board temperature detection,high voltage transformer temperature detection,cooling water temperature detection,back flow water detection.The equipment stops operating and the corresponding fault indicator on the control panel lights up when a fault is detected.

Ozone amount continuously adjustable.

Stanadard 4~20mA signal control.The equipment can be precisely controlled by different types of ozone measuring device and has met requirements of many customers around the world.

Main componets from Siemens(IGBT,IGBT module).

Siemens PLC for all 1kg/h and above ozone generators.Siemens PLC optional for 40~800g/h ozone generators.

1. Water-cooling.

2.Both air and oxygen source accpetable.

3.Standard 4~20mA signal access port,allowing remote control by different types of ozone measureing devices.

4. Key points monitoring including main board temperature detection,line output transformer temperature detection,cooling water temperature detection,back flow water  detection of the corona discharge tube.

5. Stepless adjustable ozone output.

6.Circuit components from Siemens(IGBT).
